Monday, January 25, 2010

ZStack PRNG Fixed

by Travis Goodspeed <travis at radiantmachines.com>
concerning versions 2.2.2 and 2.3.0 of TI Z-Stack
and a fix of the ZigBee Smart Energy Profile ECC vulnerability.

Texas Instruments has released version 2.3.0 of Z-Stack, their ZigBee stack for the TI/Chipcon CC2530, MSP430, and CC430 chips. The new version adds a variety of new features, but chief among them is a fix to the random number generator which used to be utterly insufficient for cryptographic use. Technical details on the vulnerability were first revealed publicly in my last article. (Nate Lawson's translation is here.)

Source code for the new generator is not included, but rather references as a Security Service Provider (SSP). Since 2.2.3, they have extended the SSP API to include SSP_GetTrueRandAES() for generating random numbers by an AES key.

ZStack 2.3.0-1.40 TrueRand Functions

This is then called in zclGeneral_KeyEstablishment_GetRandom(), which in previous versions used the 16-bit LFSR.

ZStack 2.3.0-1.4.0

Authors of firmware for ZigBee Smart Energy devices that have used this code should patch their source code and issue firmware upgrades as quickly as possible. Those with independent crypto implementations should check to ensure that they have not made similar mistakes. Programmers should also note that

Electric utilities with equipment using the MSP430 or Chipcon CC2530 should contact their vendors for such updates. Unlike Windows and Linux, there's no easy way to perform an upgrade of a fragment of microcontroller firmware to which you haven't got the source.

This fix only applies to the remote recovery of keys by PRNG attacks; local key extraction is still possible by the methods that I outlined in Extracting Keys from Second Generation ZigBee Chips.

Saturday, January 9, 2010

PRNG Vulnerability of Z-Stack ZigBee SEP ECC

by Travis Goodspeed <travis at radiantmachines.com>
with neighborly thanks to Nick DePetrillo,
concerning version 2.2.2-1.30 of TI Z-Stack
and a ZigBee Smart Energy Profile ECC vulnerability.

Not Quite Random

In past articles, I've presented a variety of local attacks against microcontrollers and ZigBee radios. While I maintain that local vulnerabilities are still very relevant to ZigBee devices, this article presents a remotely exploitable vulnerability in the way that random keys are generated by TI's Z-Stack ZCL implementation of the ZigBee Cluster Library. Randomly generated numbers--those fed into the Certicom ECC crypto library--are predictable, repeated in one of two 32kB cycles. Details follow, with links to source code and a complete list of random numbers.

Dumping Random Bytes

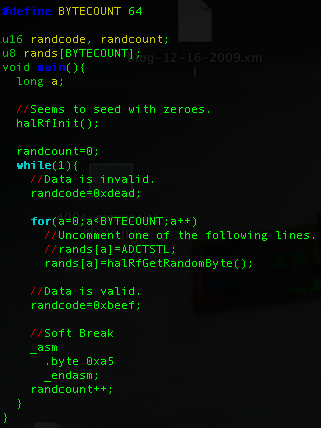

I dumped byte sequences from the CC2430 using the GoodFET to debug a live chip. The chip runs a program which populates IRAM with PRNG bytes, then halts with a soft breakpoint (Opcode 0xA5) for the debugger to grab all sampled values. The main loop looks something like this:
Chipcon RNG Dumper
The firmware was compiled with the Small Device C Compiler, flashed by the GoodFET. A quick Python script then used the GoodFET library to debug the target, dumping random values through the same interface that programmed the chip.
Chipcon Byte Dumper

Short PRNG Period


Page 18 of the CC2530 Datasheet describes the random number generator peripheral, which is shared by all other 8051-based ZigBee SoC devices in the series.
The random-number generator uses a 16-bit LFSR to generate pseudorandom numbers, which can be read by the CPU or used directly by the command strobe processor. The random numbers can, e.g., be used to generate random keys used for security.

The state of this RNG is initialized in the hardware abstraction library by feeding 32 bytes from the ADCTSTH special function register into RNDH register. Bytes read from ADCTSTH are physically random, but poorly distributed. RNDH and RNDL are the High and Low bytes of a 16-bit CRC Linear Feedback Shift Register, the state of which can be advanced by writing to RNDH or overwritten by writing to RNDL. In between reading or writing from RND, the state is advanced by setting the fourth bit of ADCCON1. Detailed descriptions of these registers can also be found within the datasheet.

CC2430 examples randomize the seed by mixing 32 values into the RNG,
for(i=0;i<32;i++){
RNDH=ADCTSTH;
ADCCON1|=0x04;
}

Because these numbers are not evenly distributed, Z-Stack prefers to sample just the least significant bit of the RF random number generator sixteen times, then write them in directly as the state without mixing them. Further, it checks to ensure that the state is not a dead-end, substituting another if it is. This method is also advocated within the CC2530 programming guides.
for(i=0; i<16; i++)
rndSeed = (rndSeed << 1) | (RFRND & 0x01);
if (rndSeed == 0x0000 || rndSeed == 0x0380)
rndSeed = 0xBABE;
RNDL = rndSeed & 0xFF;
RNDL = rndSeed >> 8;


Once the RNG has been seeded, it has an initially random 16-bit state. From then on, however, it produces random bytes in a predictable sequence. Only the starting point is random, as ADCTSTH is never used for future reseeding. As shown in the screenshot above, if the sequence "7c e1 e8 4e f4 87" is observed, the probability of the next bytes being "62 49 56 fe 80 00 60" is 100 percent. Further, because the domain is so small, it can be exhaustively searched for keys in little time.

Not Quite Random

Code for dumping these values through the GoodFET debugger can be found by svn, along with a complete dump of the PRNG sequence.
svn co https://goodfet.svn.sourceforge.net/svnroot/goodfet/contrib/ccrandtest

Seed Values


Seed Histogram

The plot above shows the histogram of radio ADCTSTL values used to seed the PRNG. These are far from random, but when sampled slowly enough, their least significant bit is probably good enough for key generation. There are, however, two things of interest with this.

First, if the crypto library is used infrequently, it would make sense to use this source of entropy instead of the inadequately random PRNG output. There would be a cost in power consumption, as ADCTSTL is only random while the radio is operating, but the resulting increase to security is necessary.

Second, if the peaks on the histogram come from a measurement of the radio, it might be possible to generate a radio signal that forces even the least significant bit to be a predictable value. Steps such as AES whitening should be taken to avoid such an attack.

ZigBee SEP, ECC


A less than perfect random number generator is not much of an issue when symmetric keys are pre-shared, but because pre-shared keys are vulnerable to local attacks, the ZigBee Smart Energy profile recommends the use of session keys signed by elliptic curve cryptography. See the USAF paper Cryptanalysis of an elliptic curve cryptosystem for wireless sensor networks for a prior break of ECC with a poor RNG.

As will be shown in the next section, Chipcon's ZStack makes use of poorly random PRNG data as key material, allowing for a key domain of only 16 bits. This is small enough to be exhaustively searched, either by a PC or by a "Chinese Lottery" of previously compromised wireless sensors.

ZStack Usage


ZStack 2.2.2-1.30 for the CC2530 makes use of the PRNG to implement the Smart Energy Profile's asymmetric cryptography. The Windows installer works perfectly under Wine, leaving ZStack installed to an awkward directory. I symlink it to /opt/zstack for convenience.
CC2530 in Wine

Once installed, the following Functions are of interest.

mac_mcu.c contains macMcuRandomByte() and macMcuRandomWord(). As the two are largely the same, take the former for an example. First the PRNG is clocked, then the high byte is sampled.
ZStack macMcuRandomByte()

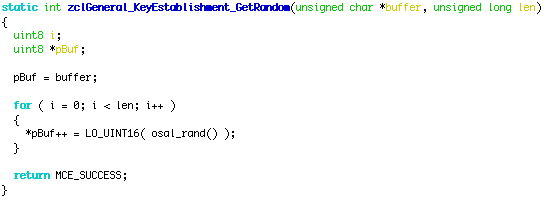

zcl_key_establish.c is used to generate keys by the ZigBee Cluster Library specification, available for free by form from ZigBee.org. The code fragment below takes the low bytes of macMcuRandomWord(), redefined as osal_rand(), to populate a session key before signature.
ZCL KeyEstablishment GetRandom

The ultimate function for ECC key generation is ZSE_ECCGenerateKey(), which is defined in eccapi.h but whose source is missing. Reading ecc.r51 yields a few filenames as part of stored compiler warnings. The developer's filename was "C:\SVN-ZStack-2.2.0\Components\stack\sec\eccapi.c", but it is only a stand-in for the Certicom Security Builder MCE library that is not shipped with the development kit. In any case, the vulnerability here lies in ZStack and not in Security Builder.

Conclusions


This article has shown that the Chipcon ZStack library, as of version 2.2.2-1.30 for CC2530, uses an insufficiently random PRNG for cryptographic signatures and session keys. PRNG data repeat every 32,767 samples, and there are at most 16 bits of entropy in any key. Searching the entire key space ought to be possible in very little time. Contrary to the CC2530's documentation, these random numbers must not be used to generate random keys used for security.

All users of this library, particularly those using it for Smart Grid devices and other industrial applications, are recommended to re-implement macMcuRandomWord() and to ensure that nothing requiring cryptographic security operates from the PRNG alone. Users of other libraries for the Chipcon devices should ensure that those libraries are not using the PRNG data.

Competing devices and libraries should also be checked for similar vulnerabilities, as well as commercial products such as Smart Meters that might have forked the ZStack code or followed the datasheet's recommendation of using the PRNG for key generation.
